Neptune Systems Screw Chart
Where it’s used: Size and Style:
Module mount screws * 8-15 X 5/8 Phil Truss FT STS Type A Black Oxide
A2/A3 case screws * 4-24 x 1/2 Phil Pan FT STS Type B Black Oxide

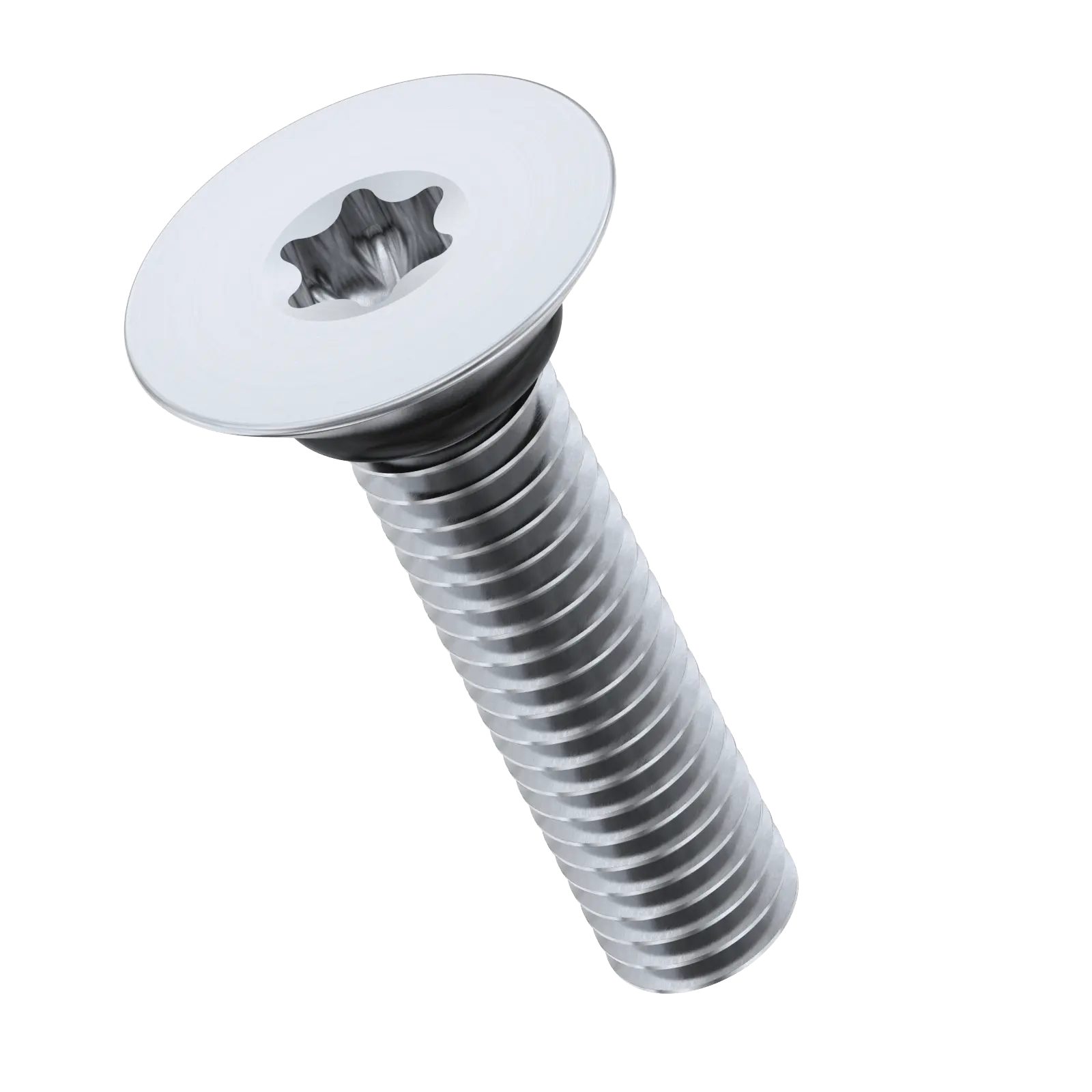

A3Jr case screws * M2.2-0.98 x 8 mm, Torx, Flat Head
EB832/632 case screws * #4 x 1-1/2" Type B Self-Tapping Screws / Phillips / Pan Head Steel / Black Oxide

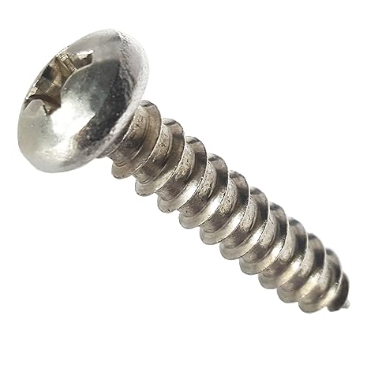

Module case screws * #2 x 3/8" Self-Tapping Screws Phillips / Pan Head
Including COR Driver *

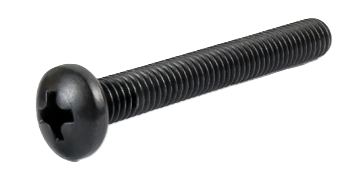

DOS case screws * M3-0.5 X 8 SEMS Machine Screw / ISO7045 / Phillips / Pan Head / External Tooth L/W / Steel / Zinc

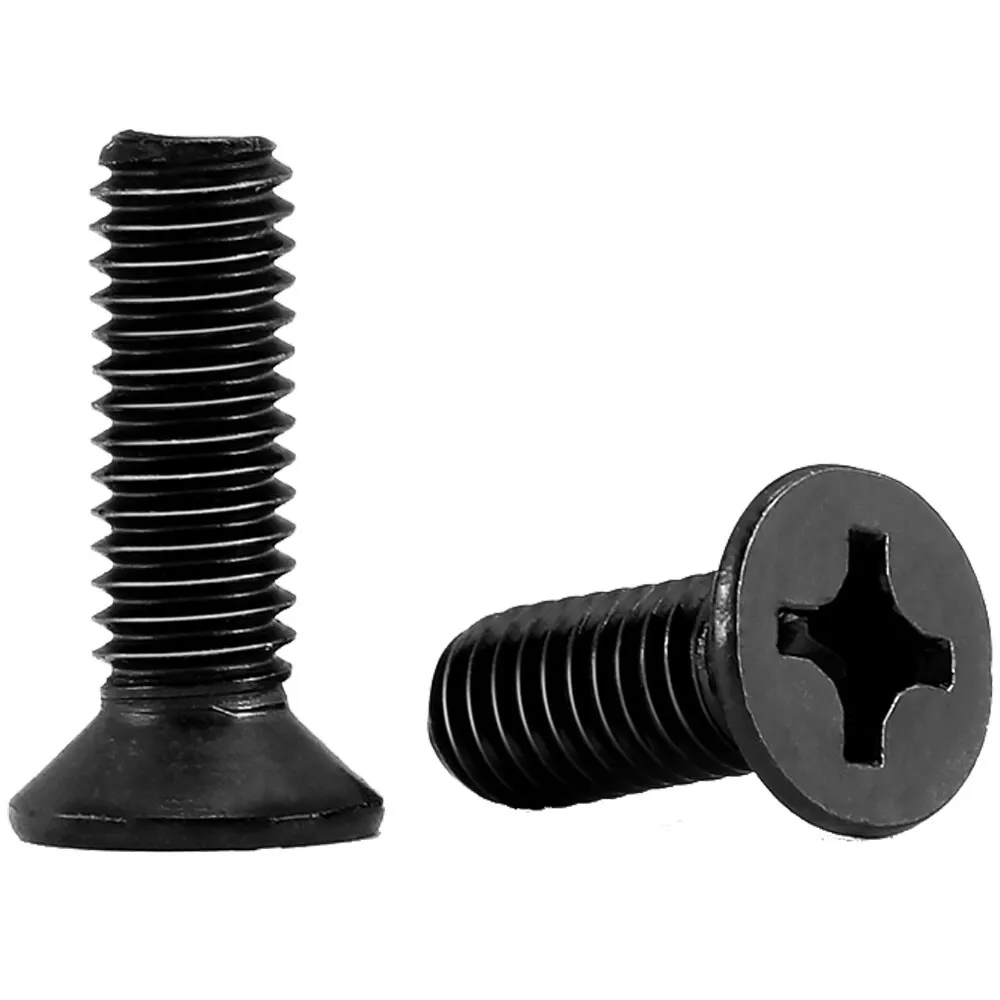

SKY mounting screws * M5-0.8 x 10 mm, Phillips, Flat,18-8 Stainless Steel, Black for RMS mount

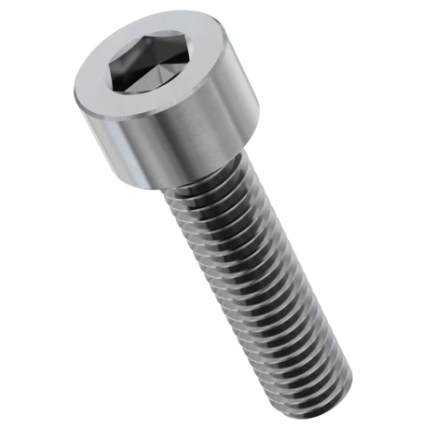

COR volute screws * M6 x10mm, Full Thread Cap Head Screws, Titanium
MXM case screws * 18-8 Stainless Steel, M1.91 Size, 10 mm Long / Torx Plus Rounded Head Thread-Forming Screws for Plastic
EB8/EB4/EB6/JR Sides case screws * #4 1/4 Self-Tapping Screws Phillips / Pan Head
